Slimline Drain Tray Joining Instructions
Products | Drip Irrigation Guide | Recirculating Irrigation Guide | Pump Maintenance | Moisture Sensor Setup | Woods Timer | Slimline Drain Tray Joining
Materials:
Roll of 1-inch Gorilla Tape
Tube of PVC glue
2 joining braces
2 compression blocks
2 Zip-ties
Align and Secure: Place both sections of the Slimline drain tray face down on a flat surface. Ensure they align perfectly along the edges. Apply six 6-inch pieces of Gorilla Tape longitudinally along the outside side and bottom edges of the joint to hold the sections together firmly. Use 2 strips per outside edge. Ensure the joint is tightly pressed together.
Flip the tray: Turn the tray over to reveal the inside.
Clean and Dry: Make sure the surfaces are clean and dry.
Apply pvc glue (Inside): Use the tube to spread a generous amount of glue inside the tray at the joint 1 inch from the seam and on the sides.
Apply pvc glue to joint pieces.
Place angle braces inside the tray.
Place retainer blocks.

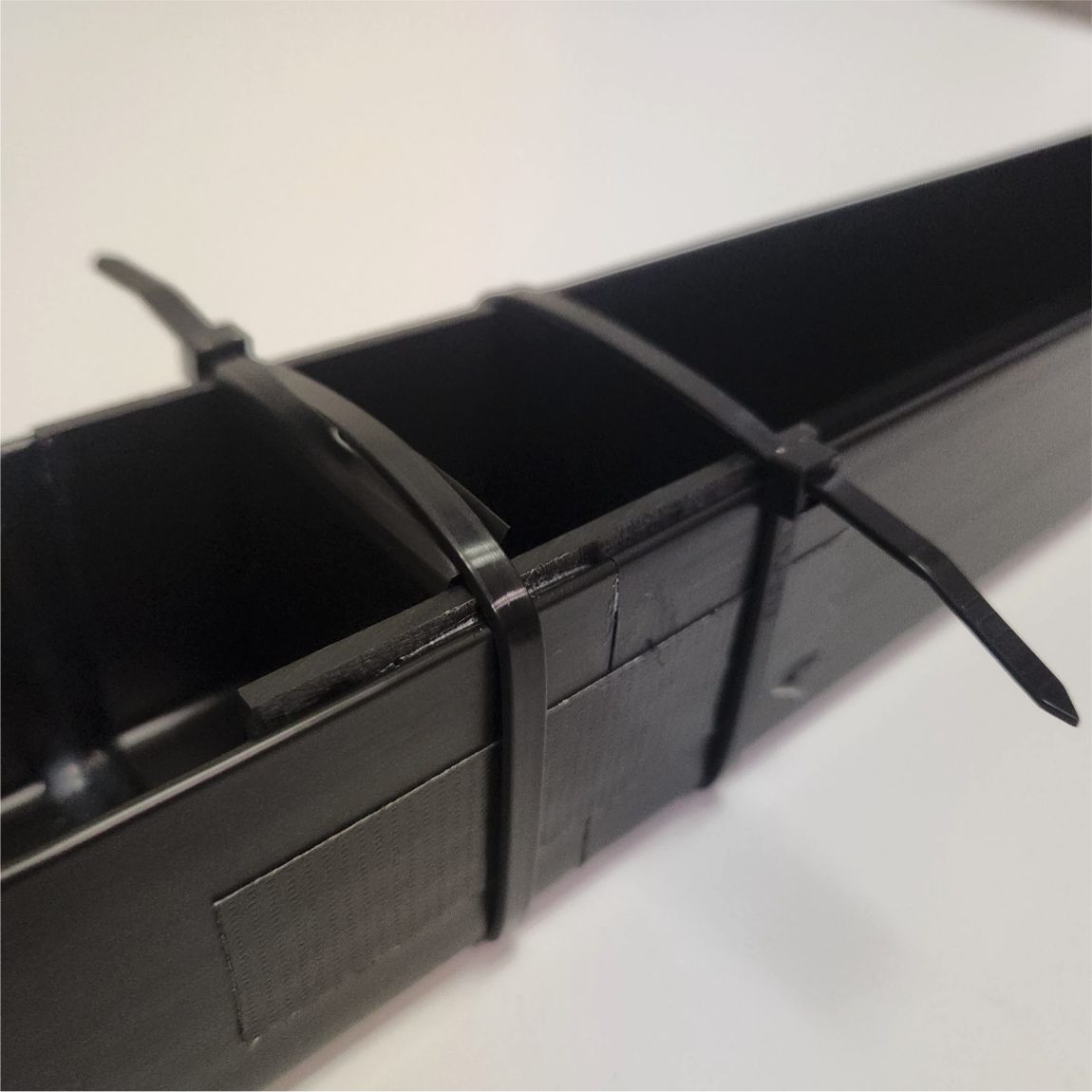

Tightly secure zip-ties.
Add pvc glue to seams.
Allow 24 hours to cure.
