Water Shields are folded plastic sheets that protect the wall from moisture and keep water in the system.

How to install Water Shields

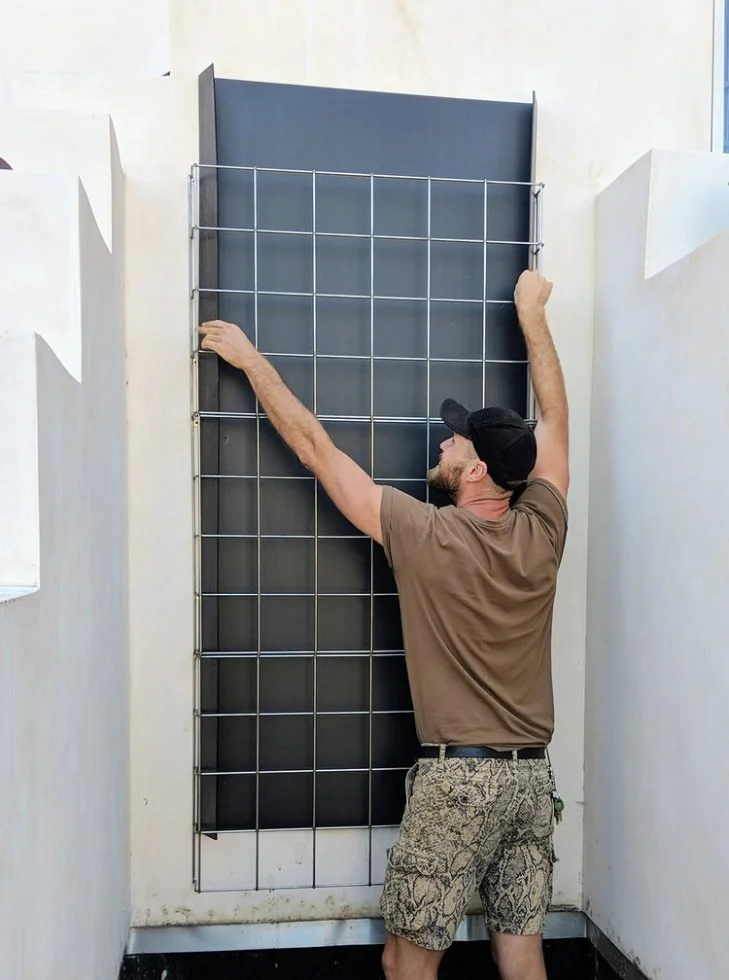

Insert the Water Shield

Water shields are slid in from the top or bottom. Fold in the side edges and slide into place. Be sure to overlap the shields toward the front so water will flow into the system. Open the side flaps to lock them in place.

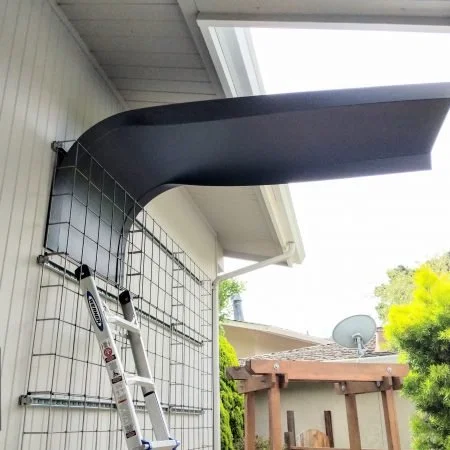

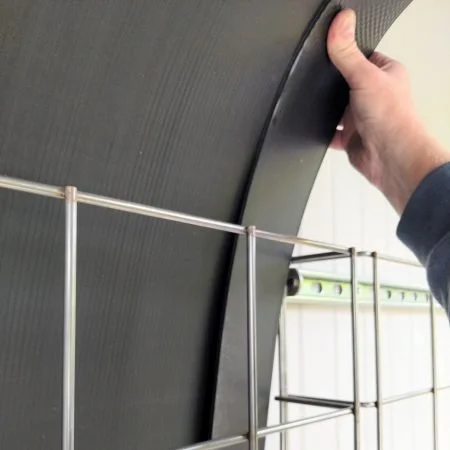

Fold in edges and insert from the top

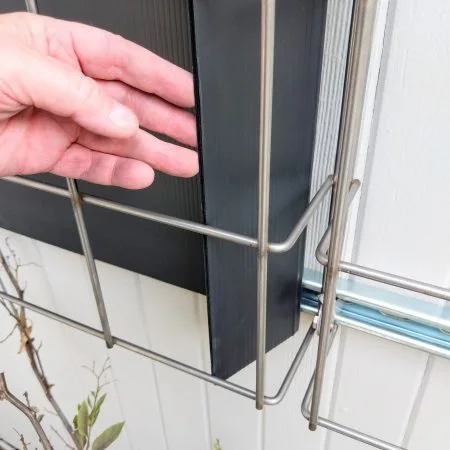

Slide down in place

Sizing Notes

  • Leave 1/4″ overlap at the top and bottom

  • If taller than 8′ add additional pieces

  • Confirm additional pieces overlap outward

  • Like a shingle, direct all moisture toward the front

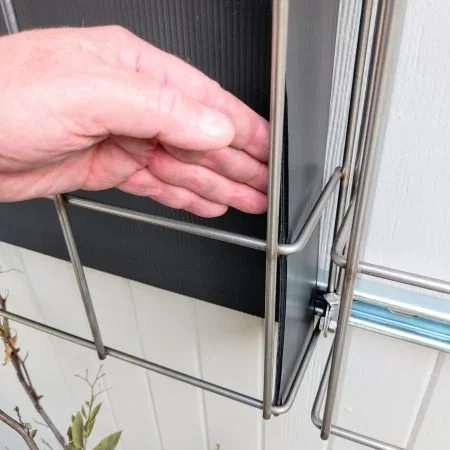

Pop out the sides to lock in place

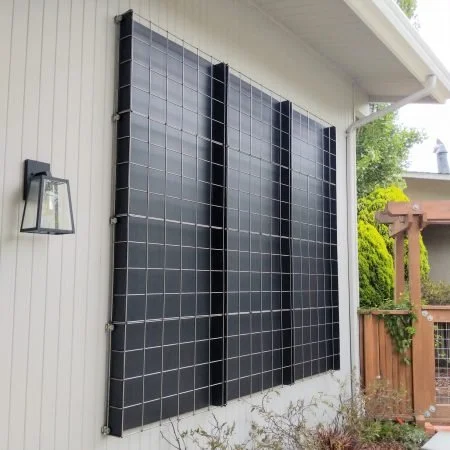

Add a Water Shield to Each Column

  • Add a water shield for each 36-inch grid column
